No complicated setups, no camera-specific risers, no downtime: the Halo Universal Advanced Kit for Small Cameras is the ultimate rigging solution for filmmakers. Assembly is quick and easy, and the Advanced Kit contains everything you need to get shooting in seconds. There is a Top Handle for handheld shooting, or you can seamlessly swap mounting points with the Universal Dovetail: the only Dovetail that simultaneously fits both DJI and Manfrotto mounting.
With a quick-release Arca mount for switching out small cameras, the Halo Universal Advanced Kit is the perfect camera cage for filmmakers of any skill level.
Universal Camera Cage
With theHalo Universal Camera Cage, any camera can be set up for rigging in moments. The Halo forms a square around the camera body, striking a balance between clearance for large cameras and a compact form factor. This means that any camera, from the compact Sony FX30 up to the ultra-powerful RED V-RAPTOR XL, can be mounted.
Dovetail Design
Complete the cage with ourUniversal Dovetail, which mounts via the included15mm LWS Rod Bracketto form a base for any camera. The Dovetail is the only one of its kind to have dual compatibility with Manfrotto tripods and DJI gimbals, allowing you to seamlessly transition from mount to mount.
Get Creative
The Advanced Kit also features ourCreate Baseplate: the perfect mounting point for your setup. With 1/4″ and 3/8” screw threads in the base and a multi-standard dovetail receiver on top, the Baseplate perfectly complements the Universal Dovetail for easy static mounting. The upper and lower dovetail channels make the Baseplate compatible with Arca, DJI and Manfrotto dovetail plates; further expanding the definition of “Universal”.
Clearance for Compact Cameras
The issue with a majority of hybrid and compact cinema cameras is the minimal distance from the lens mount to the base of the camera, which causes lenses to collide with many standard dovetails. With the includedArca RiserandArca Receiver, the camera is elevated so that lenses don’t clash with the dovetail. This doubles as a quick-release system, meaning that you can easily remove your camera from the rig for adjusting settings or swapping out lenses.
Convenient Carrying
For handheld shooting, the Halo Advanced Kit comes with a low-profileShort Create Top Handlewhich mounts to the top of the cage via the integrated NATO rail. The handle has a small mechanism that clicks into place when exactly centred, optimising the balance for transporting the camera.
By Filmmakers, For Filmmakers
The Halo Universal Advanced Kit for Small Cameras makes professional camera setups more accessible. You don’t need a dozen different Hex Keys or a batch of dedicated risers or spacers: everything fits together cleanly and efficiently onto 15mm support rods – which are included in the Kit.
Built to Last
Our Halo Kits are designed and engineered to the highest standards of quality, making them long-lasting camera rigging solutions. OurDrumstixare made from a durable structural alloy with extendable ends, and the rest of the kit is made from aerospace-grade anodised aluminium. Lightweight yet still resistant to wear-and-tear and rough treatment, the Halo Advanced Kit will be a constant companion in your filmmaking journey.
Part of the Halo System
The Halo is our best universal camera cage: offering total freedom and scope for customisation in a single package. Ideal for filmmakers with constantly changing setups, the Halo provides a consistent starting point for any camera and any rig.
Instructions/Assembly
The Halo Universal Advanced Kit for Small Cameras ships partially pre-assembled. You will require a flathead screwdriver and 4mm Hex Key Hein order to assemble it.
15mm LWS Rod Bracket to Dovetail
1. Align the two 3/8” screws on the top of the rod bracket with the threads on the base of the dovetail.
2. Use a 4mm Hex Key to tighten both screws into place.
Rods to Rod Bracket
1. Slide the 15mm rods into their bracket until correctly positioned.
2. Use the lever clamps to tighten each bracket and secure the rods in place.
Halo to Rods
1. Slide the completed Halo onto the 15mm rods.
2. Use the two lever clamps to tighten each bracket when in the optimal position.
Arca Riser to Camera
1. Align the 1/4”-20 screw thread with the base of your camera.
2. Use the D-Ring screw to tighten the Riser to your camera body.
Arca Receiver to Universal Dovetail
1. Align the Receiver in the central channel of the Universal Dovetail and insert the two 1/4″-20 screws.
2. Use a flathead screwdriver secure the two together.
Arca Riser to Arca Receiver
1. Slide your Arca plate sideways along the Arca Receiver (following the direction indicated by the arrows). 2. When clicked into place with the safety stops, secure with the locking lever.
Top Handle to NATO Rail
1. Slide the NATO clamp onto a corresponding NATO rail – if the rail has a central socket, you will hear the spring-loaded balls click into place when the handle is centred.
2. Use the lever clamp to tighten the Top Handle into place.
Universal Dovetail to Create Baseplate
1. Load the Dovetail into the Create Baseplate from the rear – ensuring that the safety screw is loaded in the “Manfrotto Mode” channel.
2.When positioned, lock the dovetail in place with the locking mechanism.
Compatibility
The Halo Universal Advanced Kit for Small Cameras is compatible with any camera, large or small. The Arca Riser and Arca Receiver provide clearance for compact camera bodies, but the Halo Kit can be used without them for larger models where lens mounts are higher.
Zero Compromises
Bright Tangerine products are engineered to the highest standards of quality and longevity. Rigorously designed and tested, each new product works to solve practical filmmaking problems, and to maximise convenience on-set. We are always open to feedback and have a top-rated customer service team to deal with any and all queries.
No complicated setups, no camera-specific risers, no downtime: the Halo Universal Advanced Kit for Small Cameras is the ultimate rigging solution for filmmakers. Assembly is quick and easy, and the Advanced Kit contains everything you need to get shooting in seconds. There is a Top Handle for handheld shooting, or you can seamlessly swap mounting points with the Universal Dovetail: the only Dovetail that simultaneously fits both DJI and Manfrotto mounting.
With a quick-release Arca mount for switching out small cameras, the Halo Universal Advanced Kit is the perfect camera cage for filmmakers of any skill level.
Universal Camera Cage
With theHalo Universal Camera Cage, any camera can be set up for rigging in moments. The Halo forms a square around the camera body, striking a balance between clearance for large cameras and a compact form factor. This means that any camera, from the compact Sony FX30 up to the ultra-powerful RED V-RAPTOR XL, can be mounted.
Dovetail Design
Complete the cage with ourUniversal Dovetail, which mounts via the included15mm LWS Rod Bracketto form a base for any camera. The Dovetail is the only one of its kind to have dual compatibility with Manfrotto tripods and DJI gimbals, allowing you to seamlessly transition from mount to mount.
Get Creative
The Advanced Kit also features ourCreate Baseplate: the perfect mounting point for your setup. With 1/4″ and 3/8” screw threads in the base and a multi-standard dovetail receiver on top, the Baseplate perfectly complements the Universal Dovetail for easy static mounting. The upper and lower dovetail channels make the Baseplate compatible with Arca, DJI and Manfrotto dovetail plates; further expanding the definition of “Universal”.
Clearance for Compact Cameras
The issue with a majority of hybrid and compact cinema cameras is the minimal distance from the lens mount to the base of the camera, which causes lenses to collide with many standard dovetails. With the includedArca RiserandArca Receiver, the camera is elevated so that lenses don’t clash with the dovetail. This doubles as a quick-release system, meaning that you can easily remove your camera from the rig for adjusting settings or swapping out lenses.
Convenient Carrying
For handheld shooting, the Halo Advanced Kit comes with a low-profileShort Create Top Handlewhich mounts to the top of the cage via the integrated NATO rail. The handle has a small mechanism that clicks into place when exactly centred, optimising the balance for transporting the camera.
By Filmmakers, For Filmmakers
The Halo Universal Advanced Kit for Small Cameras makes professional camera setups more accessible. You don’t need a dozen different Hex Keys or a batch of dedicated risers or spacers: everything fits together cleanly and efficiently onto 15mm support rods – which are included in the Kit.
Built to Last
Our Halo Kits are designed and engineered to the highest standards of quality, making them long-lasting camera rigging solutions. OurDrumstixare made from a durable structural alloy with extendable ends, and the rest of the kit is made from aerospace-grade anodised aluminium. Lightweight yet still resistant to wear-and-tear and rough treatment, the Halo Advanced Kit will be a constant companion in your filmmaking journey.
Part of the Halo System
The Halo is our best universal camera cage: offering total freedom and scope for customisation in a single package. Ideal for filmmakers with constantly changing setups, the Halo provides a consistent starting point for any camera and any rig.
Instructions/Assembly
The Halo Universal Advanced Kit for Small Cameras ships partially pre-assembled. You will require a flathead screwdriver and 4mm Hex Key Hein order to assemble it.
15mm LWS Rod Bracket to Dovetail
1. Align the two 3/8” screws on the top of the rod bracket with the threads on the base of the dovetail.
2. Use a 4mm Hex Key to tighten both screws into place.
Rods to Rod Bracket
1. Slide the 15mm rods into their bracket until correctly positioned.
2. Use the lever clamps to tighten each bracket and secure the rods in place.
Halo to Rods
1. Slide the completed Halo onto the 15mm rods.
2. Use the two lever clamps to tighten each bracket when in the optimal position.
Arca Riser to Camera
1. Align the 1/4”-20 screw thread with the base of your camera.
2. Use the D-Ring screw to tighten the Riser to your camera body.
Arca Receiver to Universal Dovetail
1. Align the Receiver in the central channel of the Universal Dovetail and insert the two 1/4″-20 screws.
2. Use a flathead screwdriver secure the two together.
Arca Riser to Arca Receiver
1. Slide your Arca plate sideways along the Arca Receiver (following the direction indicated by the arrows). 2. When clicked into place with the safety stops, secure with the locking lever.
Top Handle to NATO Rail
1. Slide the NATO clamp onto a corresponding NATO rail – if the rail has a central socket, you will hear the spring-loaded balls click into place when the handle is centred.
2. Use the lever clamp to tighten the Top Handle into place.
Universal Dovetail to Create Baseplate
1. Load the Dovetail into the Create Baseplate from the rear – ensuring that the safety screw is loaded in the “Manfrotto Mode” channel.
2.When positioned, lock the dovetail in place with the locking mechanism.
Compatibility
The Halo Universal Advanced Kit for Small Cameras is compatible with any camera, large or small. The Arca Riser and Arca Receiver provide clearance for compact camera bodies, but the Halo Kit can be used without them for larger models where lens mounts are higher.
Zero Compromises
Bright Tangerine products are engineered to the highest standards of quality and longevity. Rigorously designed and tested, each new product works to solve practical filmmaking problems, and to maximise convenience on-set. We are always open to feedback and have a top-rated customer service team to deal with any and all queries.
No complicated setups, no camera-specific risers, no downtime: the Halo Universal Advanced Kit for Small Cameras is the ultimate rigging solution for filmmakers. Assembly is quick and easy, and the Advanced Kit contains everything you need to get shooting in seconds. There is a Top Handle for handheld shooting, or you can seamlessly swap mounting points with the Universal Dovetail: the only Dovetail that simultaneously fits both DJI and Manfrotto mounting.
With a quick-release Arca mount for switching out small cameras, the Halo Universal Advanced Kit is the perfect camera cage for filmmakers of any skill level.
Universal Camera Cage
With theHalo Universal Camera Cage, any camera can be set up for rigging in moments. The Halo forms a square around the camera body, striking a balance between clearance for large cameras and a compact form factor. This means that any camera, from the compact Sony FX30 up to the ultra-powerful RED V-RAPTOR XL, can be mounted.
Dovetail Design
Complete the cage with ourUniversal Dovetail, which mounts via the included15mm LWS Rod Bracketto form a base for any camera. The Dovetail is the only one of its kind to have dual compatibility with Manfrotto tripods and DJI gimbals, allowing you to seamlessly transition from mount to mount.
Get Creative
The Advanced Kit also features ourCreate Baseplate: the perfect mounting point for your setup. With 1/4″ and 3/8” screw threads in the base and a multi-standard dovetail receiver on top, the Baseplate perfectly complements the Universal Dovetail for easy static mounting. The upper and lower dovetail channels make the Baseplate compatible with Arca, DJI and Manfrotto dovetail plates; further expanding the definition of “Universal”.
Clearance for Compact Cameras
The issue with a majority of hybrid and compact cinema cameras is the minimal distance from the lens mount to the base of the camera, which causes lenses to collide with many standard dovetails. With the includedArca RiserandArca Receiver, the camera is elevated so that lenses don’t clash with the dovetail. This doubles as a quick-release system, meaning that you can easily remove your camera from the rig for adjusting settings or swapping out lenses.
Convenient Carrying
For handheld shooting, the Halo Advanced Kit comes with a low-profileShort Create Top Handlewhich mounts to the top of the cage via the integrated NATO rail. The handle has a small mechanism that clicks into place when exactly centred, optimising the balance for transporting the camera.
By Filmmakers, For Filmmakers
The Halo Universal Advanced Kit for Small Cameras makes professional camera setups more accessible. You don’t need a dozen different Hex Keys or a batch of dedicated risers or spacers: everything fits together cleanly and efficiently onto 15mm support rods – which are included in the Kit.
Built to Last
Our Halo Kits are designed and engineered to the highest standards of quality, making them long-lasting camera rigging solutions. OurDrumstixare made from a durable structural alloy with extendable ends, and the rest of the kit is made from aerospace-grade anodised aluminium. Lightweight yet still resistant to wear-and-tear and rough treatment, the Halo Advanced Kit will be a constant companion in your filmmaking journey.
Part of the Halo System
The Halo is our best universal camera cage: offering total freedom and scope for customisation in a single package. Ideal for filmmakers with constantly changing setups, the Halo provides a consistent starting point for any camera and any rig.
Instructions/Assembly
The Halo Universal Advanced Kit for Small Cameras ships partially pre-assembled. You will require a flathead screwdriver and 4mm Hex Key Hein order to assemble it.
15mm LWS Rod Bracket to Dovetail
1. Align the two 3/8” screws on the top of the rod bracket with the threads on the base of the dovetail.
2. Use a 4mm Hex Key to tighten both screws into place.
Rods to Rod Bracket
1. Slide the 15mm rods into their bracket until correctly positioned.
2. Use the lever clamps to tighten each bracket and secure the rods in place.
Halo to Rods
1. Slide the completed Halo onto the 15mm rods.
2. Use the two lever clamps to tighten each bracket when in the optimal position.
Arca Riser to Camera
1. Align the 1/4”-20 screw thread with the base of your camera.
2. Use the D-Ring screw to tighten the Riser to your camera body.
Arca Receiver to Universal Dovetail
1. Align the Receiver in the central channel of the Universal Dovetail and insert the two 1/4″-20 screws.
2. Use a flathead screwdriver secure the two together.
Arca Riser to Arca Receiver
1. Slide your Arca plate sideways along the Arca Receiver (following the direction indicated by the arrows). 2. When clicked into place with the safety stops, secure with the locking lever.
Top Handle to NATO Rail
1. Slide the NATO clamp onto a corresponding NATO rail – if the rail has a central socket, you will hear the spring-loaded balls click into place when the handle is centred.
2. Use the lever clamp to tighten the Top Handle into place.
Universal Dovetail to Create Baseplate
1. Load the Dovetail into the Create Baseplate from the rear – ensuring that the safety screw is loaded in the “Manfrotto Mode” channel.
2.When positioned, lock the dovetail in place with the locking mechanism.
Compatibility
The Halo Universal Advanced Kit for Small Cameras is compatible with any camera, large or small. The Arca Riser and Arca Receiver provide clearance for compact camera bodies, but the Halo Kit can be used without them for larger models where lens mounts are higher.
Zero Compromises
Bright Tangerine products are engineered to the highest standards of quality and longevity. Rigorously designed and tested, each new product works to solve practical filmmaking problems, and to maximise convenience on-set. We are always open to feedback and have a top-rated customer service team to deal with any and all queries.
No complicated setups, no camera-specific risers, no downtime: the Halo Universal Advanced Kit for Small Cameras is the ultimate rigging solution for filmmakers. Assembly is quick and easy, and the Advanced Kit contains everything you need to get shooting in seconds. There is a Top Handle for handheld shooting, or you can seamlessly swap mounting points with the Universal Dovetail: the only Dovetail that simultaneously fits both DJI and Manfrotto mounting.
With a quick-release Arca mount for switching out small cameras, the Halo Universal Advanced Kit is the perfect camera cage for filmmakers of any skill level.
Universal Camera Cage
With theHalo Universal Camera Cage, any camera can be set up for rigging in moments. The Halo forms a square around the camera body, striking a balance between clearance for large cameras and a compact form factor. This means that any camera, from the compact Sony FX30 up to the ultra-powerful RED V-RAPTOR XL, can be mounted.
Dovetail Design
Complete the cage with ourUniversal Dovetail, which mounts via the included15mm LWS Rod Bracketto form a base for any camera. The Dovetail is the only one of its kind to have dual compatibility with Manfrotto tripods and DJI gimbals, allowing you to seamlessly transition from mount to mount.
Get Creative
The Advanced Kit also features ourCreate Baseplate: the perfect mounting point for your setup. With 1/4″ and 3/8” screw threads in the base and a multi-standard dovetail receiver on top, the Baseplate perfectly complements the Universal Dovetail for easy static mounting. The upper and lower dovetail channels make the Baseplate compatible with Arca, DJI and Manfrotto dovetail plates; further expanding the definition of “Universal”.
Clearance for Compact Cameras
The issue with a majority of hybrid and compact cinema cameras is the minimal distance from the lens mount to the base of the camera, which causes lenses to collide with many standard dovetails. With the includedArca RiserandArca Receiver, the camera is elevated so that lenses don’t clash with the dovetail. This doubles as a quick-release system, meaning that you can easily remove your camera from the rig for adjusting settings or swapping out lenses.
Convenient Carrying
For handheld shooting, the Halo Advanced Kit comes with a low-profileShort Create Top Handlewhich mounts to the top of the cage via the integrated NATO rail. The handle has a small mechanism that clicks into place when exactly centred, optimising the balance for transporting the camera.
By Filmmakers, For Filmmakers
The Halo Universal Advanced Kit for Small Cameras makes professional camera setups more accessible. You don’t need a dozen different Hex Keys or a batch of dedicated risers or spacers: everything fits together cleanly and efficiently onto 15mm support rods – which are included in the Kit.
Built to Last
Our Halo Kits are designed and engineered to the highest standards of quality, making them long-lasting camera rigging solutions. OurDrumstixare made from a durable structural alloy with extendable ends, and the rest of the kit is made from aerospace-grade anodised aluminium. Lightweight yet still resistant to wear-and-tear and rough treatment, the Halo Advanced Kit will be a constant companion in your filmmaking journey.
Part of the Halo System
The Halo is our best universal camera cage: offering total freedom and scope for customisation in a single package. Ideal for filmmakers with constantly changing setups, the Halo provides a consistent starting point for any camera and any rig.
Instructions/Assembly
The Halo Universal Advanced Kit for Small Cameras ships partially pre-assembled. You will require a flathead screwdriver and 4mm Hex Key Hein order to assemble it.
15mm LWS Rod Bracket to Dovetail
1. Align the two 3/8” screws on the top of the rod bracket with the threads on the base of the dovetail.
2. Use a 4mm Hex Key to tighten both screws into place.
Rods to Rod Bracket
1. Slide the 15mm rods into their bracket until correctly positioned.
2. Use the lever clamps to tighten each bracket and secure the rods in place.
Halo to Rods
1. Slide the completed Halo onto the 15mm rods.
2. Use the two lever clamps to tighten each bracket when in the optimal position.
Arca Riser to Camera
1. Align the 1/4”-20 screw thread with the base of your camera.
2. Use the D-Ring screw to tighten the Riser to your camera body.
Arca Receiver to Universal Dovetail
1. Align the Receiver in the central channel of the Universal Dovetail and insert the two 1/4″-20 screws.
2. Use a flathead screwdriver secure the two together.
Arca Riser to Arca Receiver
1. Slide your Arca plate sideways along the Arca Receiver (following the direction indicated by the arrows). 2. When clicked into place with the safety stops, secure with the locking lever.
Top Handle to NATO Rail
1. Slide the NATO clamp onto a corresponding NATO rail – if the rail has a central socket, you will hear the spring-loaded balls click into place when the handle is centred.
2. Use the lever clamp to tighten the Top Handle into place.
Universal Dovetail to Create Baseplate
1. Load the Dovetail into the Create Baseplate from the rear – ensuring that the safety screw is loaded in the “Manfrotto Mode” channel.
2.When positioned, lock the dovetail in place with the locking mechanism.
Compatibility
The Halo Universal Advanced Kit for Small Cameras is compatible with any camera, large or small. The Arca Riser and Arca Receiver provide clearance for compact camera bodies, but the Halo Kit can be used without them for larger models where lens mounts are higher.
Zero Compromises
Bright Tangerine products are engineered to the highest standards of quality and longevity. Rigorously designed and tested, each new product works to solve practical filmmaking problems, and to maximise convenience on-set. We are always open to feedback and have a top-rated customer service team to deal with any and all queries.
with Arca, DJI and Manfrotto dovetail plates; further expanding the definition of “Universal”.
Clearance for Compact Cameras
The issue with a majority of hybrid and compact cinema cameras is the minimal distance from the lens mount to the base of the camera, which causes lenses to collide with many standard dovetails. With the includedArca RiserandArca Receiver, the camera is elevated so that lenses don’t clash with the dovetail. This doubles as a quick-release system, meaning that you can easily remove your camera from the rig for adjusting settings or swapping out lenses.
Convenient Carrying
For handheld shooting, the Halo Advanced Kit comes with a low-profileShort Create Top Handlewhich mounts to the top of the cage via the integrated NATO rail. The handle has a small mechanism that clicks into place when exactly centred, optimising the balance for transporting the camera.
By Filmmakers, For Filmmakers
The Halo Universal Advanced Kit for Small Cameras makes professional camera setups more accessible. You don’t need a dozen different Hex Keys or a batch of dedicated risers or spacers: everything fits together cleanly and efficiently onto 15mm support rods – which are included in the Kit.
Built to Last
Our Halo Kits are designed and engineered to the highest standards of quality, making them long-lasting camera rigging solutions. OurDrumstixare made from a durable structural alloy with extendable ends, and the rest of the kit is made from aerospace-grade anodised aluminium. Lightweight yet still resistant to wear-and-tear and rough treatment, the Halo Advanced Kit will be a constant companion in your filmmaking journey.
Part of the Halo System
The Halo is our best universal camera cage: offering total freedom and scope for customisation in a single package. Ideal for filmmakers with constantly changing setups, the Halo provides a consistent starting point for any camera and any rig.
Instructions/Assembly
The Halo Universal Advanced Kit for Small Cameras ships partially pre-assembled. You will require a flathead screwdriver and 4mm Hex Key Hein order to assemble it.
15mm LWS Rod Bracket to Dovetail
1. Align the two 3/8” screws on the top of the rod bracket with the threads on the base of the dovetail.
2. Use a 4mm Hex Key to tighten both screws into place.
Rods to Rod Bracket
1. Slide the 15mm rods into their bracket until correctly positioned.
2. Use the lever clamps to tighten each bracket and secure the rods in place.
Halo to Rods
1. Slide the completed Halo onto the 15mm rods.
2. Use the two lever clamps to tighten each bracket when in the optimal position.
Arca Riser to Camera
1. Align the 1/4”-20 screw thread with the base of your camera.
2. Use the D-Ring screw to tighten the Riser to your camera body.
Arca Receiver to Universal Dovetail
1. Align the Receiver in the central channel of the Universal Dovetail and insert the two 1/4″-20 screws.
2. Use a flathead screwdriver secure the two together.
Arca Riser to Arca Receiver
1. Slide your Arca plate sideways along the Arca Receiver (following the direction indicated by the arrows). 2. When clicked into place with the safety stops, secure with the locking lever.
Top Handle to NATO Rail
1. Slide the NATO clamp onto a corresponding NATO rail – if the rail has a central socket, you will hear the spring-loaded balls click into place when the handle is centred.
2. Use the lever clamp to tighten the Top Handle into place.
Universal Dovetail to Create Baseplate
1. Load the Dovetail into the Create Baseplate from the rear – ensuring that the safety screw is loaded in the “Manfrotto Mode” channel.
2.When positioned, lock the dovetail in place with the locking mechanism.
Compatibility
The Halo Universal Advanced Kit for Small Cameras is compatible with any camera, large or small. The Arca Riser and Arca Receiver provide clearance for compact camera bodies, but the Halo Kit can be used without them for larger models where lens mounts are higher.
Zero Compromises
Bright Tangerine products are engineered to the highest standards of quality and longevity. Rigorously designed and tested, each new product works to solve practical filmmaking problems, and to maximise convenience on-set. We are always open to feedback and have a top-rated customer service team to deal with any and all queries.
with Arca, DJI and Manfrotto dovetail plates; further expanding the definition of “Universal”.
Clearance for Compact Cameras
The issue with a majority of hybrid and compact cinema cameras is the minimal distance from the lens mount to the base of the camera, which causes lenses to collide with many standard dovetails. With the includedArca RiserandArca Receiver, the camera is elevated so that lenses don’t clash with the dovetail. This doubles as a quick-release system, meaning that you can easily remove your camera from the rig for adjusting settings or swapping out lenses.
Convenient Carrying
For handheld shooting, the Halo Advanced Kit comes with a low-profileShort Create Top Handlewhich mounts to the top of the cage via the integrated NATO rail. The handle has a small mechanism that clicks into place when exactly centred, optimising the balance for transporting the camera.
By Filmmakers, For Filmmakers
The Halo Universal Advanced Kit for Small Cameras makes professional camera setups more accessible. You don’t need a dozen different Hex Keys or a batch of dedicated risers or spacers: everything fits together cleanly and efficiently onto 15mm support rods – which are included in the Kit.
Built to Last
Our Halo Kits are designed and engineered to the highest standards of quality, making them long-lasting camera rigging solutions. OurDrumstixare made from a durable structural alloy with extendable ends, and the rest of the kit is made from aerospace-grade anodised aluminium. Lightweight yet still resistant to wear-and-tear and rough treatment, the Halo Advanced Kit will be a constant companion in your filmmaking journey.
Part of the Halo System
The Halo is our best universal camera cage: offering total freedom and scope for customisation in a single package. Ideal for filmmakers with constantly changing setups, the Halo provides a consistent starting point for any camera and any rig.
Instructions/Assembly
The Halo Universal Advanced Kit for Small Cameras ships partially pre-assembled. You will require a flathead screwdriver and 4mm Hex Key Hein order to assemble it.
15mm LWS Rod Bracket to Dovetail
1. Align the two 3/8” screws on the top of the rod bracket with the threads on the base of the dovetail.
2. Use a 4mm Hex Key to tighten both screws into place.
Rods to Rod Bracket
1. Slide the 15mm rods into their bracket until correctly positioned.
2. Use the lever clamps to tighten each bracket and secure the rods in place.
Halo to Rods
1. Slide the completed Halo onto the 15mm rods.
2. Use the two lever clamps to tighten each bracket when in the optimal position.
Arca Riser to Camera
1. Align the 1/4”-20 screw thread with the base of your camera.
2. Use the D-Ring screw to tighten the Riser to your camera body.
Arca Receiver to Universal Dovetail
1. Align the Receiver in the central channel of the Universal Dovetail and insert the two 1/4″-20 screws.
2. Use a flathead screwdriver secure the two together.
Arca Riser to Arca Receiver
1. Slide your Arca plate sideways along the Arca Receiver (following the direction indicated by the arrows). 2. When clicked into place with the safety stops, secure with the locking lever.
Top Handle to NATO Rail
1. Slide the NATO clamp onto a corresponding NATO rail – if the rail has a central socket, you will hear the spring-loaded balls click into place when the handle is centred.
2. Use the lever clamp to tighten the Top Handle into place.
Universal Dovetail to Create Baseplate
1. Load the Dovetail into the Create Baseplate from the rear – ensuring that the safety screw is loaded in the “Manfrotto Mode” channel.
2.When positioned, lock the dovetail in place with the locking mechanism.
Compatibility
The Halo Universal Advanced Kit for Small Cameras is compatible with any camera, large or small. The Arca Riser and Arca Receiver provide clearance for compact camera bodies, but the Halo Kit can be used without them for larger models where lens mounts are higher.
Zero Compromises
Bright Tangerine products are engineered to the highest standards of quality and longevity. Rigorously designed and tested, each new product works to solve practical filmmaking problems, and to maximise convenience on-set. We are always open to feedback and have a top-rated customer service team to deal with any and all queries.
정밀한 밸런스와 ARRI 표준 장비와의 안정적인 통합이 필요한 영화 제작자와 방송인을 위해 설계된, 컴팩트하고 가벼우며 내구성 있는 장착 솔루션입니다.
작은 설치 면적과 110mm의 슬라이딩 범위를 갖춘 이 6” 도브테일은 카트, 차량 마운트, 스테디캠 등 다양한 환경에서 사용하기에 이상적입니다.
컴팩트 & ARRI 호환 – ARRI 스탠다드 베이스플레이트, 브릿지플레이트, 클램프와 완벽하게 통합됩니다.
110mm 슬라이딩 범위 – 컴팩트한 세팅에서도 정밀한 리그 밸런싱이 가능합니다.
다양한 장착 옵션 – 나사형 장착 지점과 비나사형 채널을 포함하여 액세서리를 유연하게 부착할 수 있습니다.
내구성 & 경량 설계 – CNC 가공 알루미늄에 하드 아노다이징 처리로 강도와 휴대성을 동시에 확보했습니다.
세이프티 스톱 – 앞뒤 버튼식 세이프티 스톱으로 안전한 장착과 간편한 조정을 보장합니다.
제품 설명

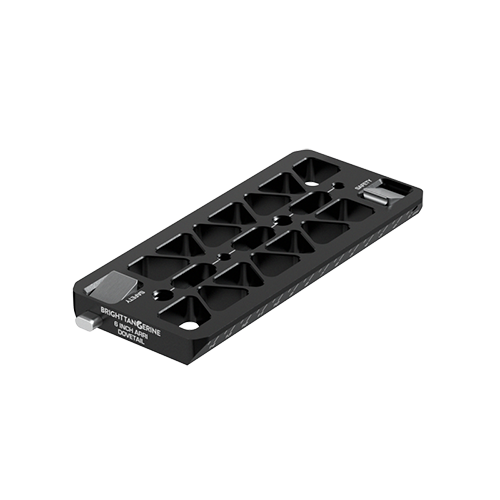

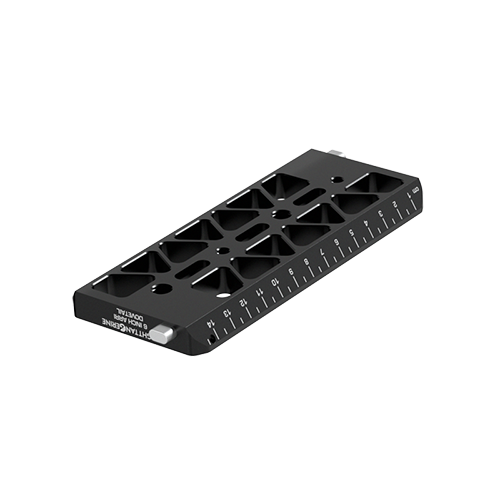

거의 모든 카메라 시스템과 안정적으로 호환되는 이 초컴팩트 6” ARRI Standard Dovetail은 설치 공간이 제한된 세팅에 최적입니다.
ARRI 스탠다드 도브테일 클램프나 베이스플레이트와 완벽하게 통합되어, 로우 프로파일을 유지하면서도 뛰어난 성능을 제공합니다.
컴팩트한 설계 덕분에 카트, 차량 마운트, 스테디캠, 짐벌 등 다양한 카메라 안정화 시스템에 장착된 리그에 이상적입니다.
3/8”-16 및 1/4”-20 나사 홀이 장착되어 있으며, 비표준 표면에 장착할 경우 UNC 나사를 사용할 수 있어, 창의적인 세팅에서도 뛰어난 유연성을 제공합니다.
컴팩트한 ARRI 호환성
이 6” 도브테일은 모든 ARRI 스탠다드 베이스플레이트, 브릿지플레이트, 클램프와 완벽하게 호환되어, 장비 키트에 필수적인 구성 요소입니다.
짐벌, 삼각대, 기타 서포트 시스템 간 전환 시에도, Create ARRI 스탠다 도브테일은 리그 구성 요소 전반에서 안정적이고 손쉬운 사용성을 보장합니다.
정밀한 슬라이딩으로 부드러운 밸런싱
세이프티 스톱 사이 110mm의 슬라이딩 범위를 제공하여, 컴팩트한 구성에서도 카메라 세팅의 밸런스를 정확하게 맞출 수 있습니다.
불필요한 부피 없이 정밀한 세팅이 필요한 사용자에게 이상적입니다.
다양한 장착 옵션
3개의 3/8″-16 나사 홀과 2개의 1/4″-20 나사 홀이 장착되어 다양한 액세서리 구성이 가능합니다. 또한 중앙의 비나사형 채널은 표준 1/4″-20 UNC 나사를 사용해 목재나 치즈 플레이트 등 다양한 표면에 도브테일을 안정적으로 장착할 수 있어, 뛰어난 유연성을 제공합니다.
내구성 & 경량 설계
CNC 가공 알루미늄으로 제작되어 강도와 휴대성을 동시에 확보했습니다.
무게를 줄이기 위한 컷아웃과 하드 아노다이징 처리로 내구성을 유지하면서도, 리그를 가볍고 손쉽게 다룰 수 있습니다.
내장형 세이프티 기능
앞뒤 세이프티 스톱은 버튼식으로 빠르게 탈착 가능하도록 설계되어, 사용 중 카메라를 확실히 고정할 수 있습니다.
이 기능은 안전성을 높이는 동시에, 조정을 보다 빠르고 스트레스 없이 수행할 수 있도록 돕습니다.
조립/사용설명 안내
Create ARRI Standard Dovetail(6”)은 별도의 조립 없이 단독으로 바로 사용할 수 있는 제품입니다.
도브테일을 삼각대 플레이트, 짐벌 플레이트 또는 기타 카메라 서포트에 장착하는 방법
1. 도브테일의 장착 구멍을 삼각대 플레이트, 짐벌 플레이트 또는 기타 서포트의 해당 나사 홀과 맞춥니다.
2. 서포트 장비에 맞는 나사(3/8″-16 또는 1/4″-20)를 사용하여 도브테일을 고정합니다.
3. 육각 렌치나 드라이버 등 적절한 도구로 나사를 단단히 조여 도브테일이 안전하게 장착되도록 합니다.
베이스플레이트가 장착된 카메라를 도브테일에 장착하는 방법
1. 카메라에 장착된 ARRI 스탠다드 베이스플레이트를 도브테일 위로 밀어 넣습니다.
2. 베이스플레이트가 원하는 위치에 오면, 베이스플레이트의 잠금 장치를 조여 도브테일에 안전하게 고정합니다.
3. 카메라를 제거할 때는 도브테일 끝까지 밀고 세이프티 스톱을 눌러 카메라를 분리합니다.
도브테일을 목재 또는 기타 표면에 장착하는 방법
1. 도브테일의 비나사형 채널을 원하는 표면 위에 위치시킵니다.
2. 1/4″-20 UNC 나사(또는 호환 가능한 나사)를 사용해 채널을 통해 도브테일을 고정합니다. 필요시 와셔를 사용해 채널 두께를 보완합니다.
3. 나사를 단단히 조여 도브테일이 표면에 확실히 고정되도록 합니다.
4. 카메라나 장비를 장착하기 전에 설치 상태가 안정적인지 반드시 확인합니다.
채널 치수
홀 폭: 6.4mm
외부 폭: 10mm
두께: 3mm
호환성
유니버설 카메라 장착 나사를 사용하여, 6” ARRI 스탠다드 도브테일은 다양한 카메라 시스템뿐만 아니라 스탠다드 도브테일 브리지플레이트, 베이스플레이트, 클램프와도 호환됩니다.
.
추가 정보
무게: 0.184kg
크기: 15.2 × 6.7 × 1.5 cm
카메라 브랜드:Universal
카메라 모델:Universal
도브테일 스탠다드: ARRI 스탠다드 도브테일 (탑 프로파일)
길이: 6" (15.2cm)
시리즈: Create
Description
No complicated setups, no camera-specific risers, no downtime: the Halo Universal Advanced Kit for Small Cameras is the ultimate rigging solution for filmmakers. Assembly is quick and easy, and the Advanced Kit contains everything you need to get shooting in seconds. There is a Top Handle for handheld shooting, or you can seamlessly swap mounting points with the Universal Dovetail: the only Dovetail that simultaneously fits both DJI and Manfrotto mounting.
With a quick-release Arca mount for switching out small cameras, the Halo Universal Advanced Kit is the perfect camera cage for filmmakers of any skill level.
Universal Camera Cage
With theHalo Universal Camera Cage, any camera can be set up for rigging in moments. The Halo forms a square around the camera body, striking a balance between clearance for large cameras and a compact form factor. This means that any camera, from the compact Sony FX30 up to the ultra-powerful RED V-RAPTOR XL, can be mounted.
Dovetail Design
Complete the cage with ourUniversal Dovetail, which mounts via the included15mm LWS Rod Bracketto form a base for any camera. The Dovetail is the only one of its kind to have dual compatibility with Manfrotto tripods and DJI gimbals, allowing you to seamlessly transition from mount to mount.
Get Creative
The Advanced Kit also features ourCreate Baseplate: the perfect mounting point for your setup. With 1/4″ and 3/8” screw threads in the base and a multi-standard dovetail receiver on top, the Baseplate perfectly complements the Universal Dovetail for easy static mounting. The upper and lower dovetail channels make the Baseplate compatible with Arca, DJI and Manfrotto dovetail plates; further expanding the definition of “Universal”.
Clearance for Compact Cameras
The issue with a majority of hybrid and compact cinema cameras is the minimal distance from the lens mount to the base of the camera, which causes lenses to collide with many standard dovetails. With the includedArca RiserandArca Receiver, the camera is elevated so that lenses don’t clash with the dovetail. This doubles as a quick-release system, meaning that you can easily remove your camera from the rig for adjusting settings or swapping out lenses.
Convenient Carrying
For handheld shooting, the Halo Advanced Kit comes with a low-profileShort Create Top Handlewhich mounts to the top of the cage via the integrated NATO rail. The handle has a small mechanism that clicks into place when exactly centred, optimising the balance for transporting the camera.
By Filmmakers, For Filmmakers
The Halo Universal Advanced Kit for Small Cameras makes professional camera setups more accessible. You don’t need a dozen different Hex Keys or a batch of dedicated risers or spacers: everything fits together cleanly and efficiently onto 15mm support rods – which are included in the Kit.
Built to Last
Our Halo Kits are designed and engineered to the highest standards of quality, making them long-lasting camera rigging solutions. OurDrumstixare made from a durable structural alloy with extendable ends, and the rest of the kit is made from aerospace-grade anodised aluminium. Lightweight yet still resistant to wear-and-tear and rough treatment, the Halo Advanced Kit will be a constant companion in your filmmaking journey.
Part of the Halo System
The Halo is our best universal camera cage: offering total freedom and scope for customisation in a single package. Ideal for filmmakers with constantly changing setups, the Halo provides a consistent starting point for any camera and any rig.
Instructions/Assembly
The Halo Universal Advanced Kit for Small Cameras ships partially pre-assembled. You will require a flathead screwdriver and 4mm Hex Key Hein order to assemble it.
15mm LWS Rod Bracket to Dovetail
1. Align the two 3/8” screws on the top of the rod bracket with the threads on the base of the dovetail.
2. Use a 4mm Hex Key to tighten both screws into place.
Rods to Rod Bracket
1. Slide the 15mm rods into their bracket until correctly positioned.
2. Use the lever clamps to tighten each bracket and secure the rods in place.
Halo to Rods
1. Slide the completed Halo onto the 15mm rods.
2. Use the two lever clamps to tighten each bracket when in the optimal position.
Arca Riser to Camera
1. Align the 1/4”-20 screw thread with the base of your camera.
2. Use the D-Ring screw to tighten the Riser to your camera body.
Arca Receiver to Universal Dovetail
1. Align the Receiver in the central channel of the Universal Dovetail and insert the two 1/4″-20 screws.
2. Use a flathead screwdriver secure the two together.
Arca Riser to Arca Receiver
1. Slide your Arca plate sideways along the Arca Receiver (following the direction indicated by the arrows). 2. When clicked into place with the safety stops, secure with the locking lever.
Top Handle to NATO Rail
1. Slide the NATO clamp onto a corresponding NATO rail – if the rail has a central socket, you will hear the spring-loaded balls click into place when the handle is centred.
2. Use the lever clamp to tighten the Top Handle into place.
Universal Dovetail to Create Baseplate
1. Load the Dovetail into the Create Baseplate from the rear – ensuring that the safety screw is loaded in the “Manfrotto Mode” channel.
2.When positioned, lock the dovetail in place with the locking mechanism.
Compatibility
The Halo Universal Advanced Kit for Small Cameras is compatible with any camera, large or small. The Arca Riser and Arca Receiver provide clearance for compact camera bodies, but the Halo Kit can be used without them for larger models where lens mounts are higher.
Zero Compromises
Bright Tangerine products are engineered to the highest standards of quality and longevity. Rigorously designed and tested, each new product works to solve practical filmmaking problems, and to maximise convenience on-set. We are always open to feedback and have a top-rated customer service team to deal with any and all queries.
; "확대")
큰 이미지 보기
